Aquatech survey RIB
Aquadynamic

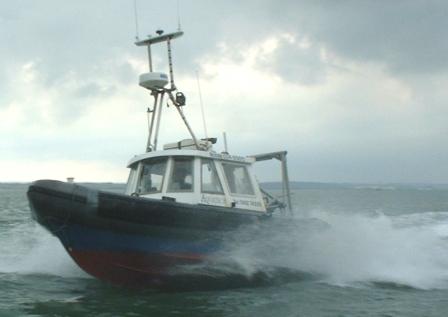

Our original enclosed RIB 'Aquatech', designed specifically for coastal and inshore survey operations, proved to be dependable, seaworthy and totally suited to the task. She still offers the best combination of capability and mobility for many inshore sites, so we are presently undertaking a major refit to extend her service well into the future.

  • Length
 7.5 metres
  • Beam
 2.9 metres
  • Draught
 400 mm
  • Power
 140 HP turbo inter-cooled diesel
  • Propulsion
 PP90 Water Jet
  • Speed
 1 knot - 8 knots survey, 17 knots at full power
  • Endurance
 Survey - 24 hours
Full power - 10 hours
  • Wheelhouse
 Enclosed and heated
1.9m x 1.9m x 2m
  • Work deck
 1.9m x 1.9m
  • Sampling winch
 100 Kg 30 m/min hydraulic
  • Electricity
 12V 90A DC
230V 16A AC 50Hz (12 outlets)
  • Electronics
 Radar 24M, DGPS, Autopilot, Sounder, VHF, PC based chart plotting & logging.
  • Bow gantry
 2 x over-side mounts + sat ant.
  • Galley
 Microwave, Kettle (no gas)
  • Safety
 Coded MCA workboat Cat 2   (60 miles from safe haven)

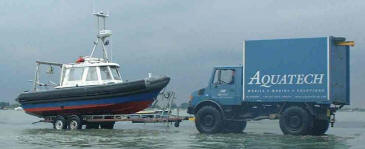

  • Towing
 Mercedes Unimog or Land Rover
  • Trailer
 3.4 tonne 4 wheel braked
  • Launching
 Most slipways, some beaches in good weather
